The Skilled Trowel

In this article, I would like to discuss the most important tool in the masons’ bag, the masons’ trowel. The one difference that separates the masons’ trowel from most other tools is that you just do not pick up a trowel and start spreading the mortar on the wall as you would use a shovel to pick up sand and place the sand in a mortar mixer. No! It is a skill that you must learn and practice how to use. Just as if would have to learn how to play the piano or hit a golf ball straight.

Have you ever watch someone try to spread mortar who has never used a trowel or has little experience in the use of a trowel? The mortar usually falls off the blade of the trowel onto the ground and if they manage to get the mortar on the unit, they end up smearing the face of the unit.

What is even more fun is watching them try to butter the brick or block. the mortar usually falls off the ends of the units and if they manage to get the mortar to stick, they are lucky if they do not end up smearing the face of the units which they are trying to apply to the mortar to.

Therefore, it is imperative that one desiring to become a brick mason master the masonry trowel to become a skilled craftsperson.

Trowels come in many different sizes and shapes and serve different functions and use. Some of the trowel types are, the common mason trowels used for brick, block, and stone, buttering trowels used for refractories, pointing trowels, margin trowels, slickers used to point, clean, and fill voids in the mortar joints, and cement trowels used for the finishing of concrete.

But for this article, we are going to discuss the common mason’s trowel used for laying brick, block, and stone since this is probably one of the firsts tools a beginning mason will purchase. And since a high-quality trowel can last for a lifetime one needs to take a close look at the design of the mason’s trowel and how it is made.

A mason’s trowel consists of a one-piece carbon alloy steel unit forged and tempered into a blade, shank, and tang. They also make stainless steel trowels at an additional cost. I do not recommend blades that are welded or riveted to the shank for the blade can easily split or snap from the shank. The blade looks like a double triangle shape with a shank and the handle attached to the tang shown in figure 1.

The front of the blade is called the toe and is longer and thinner than the heel of the blade which attaches to the shank at the rear of the blade. The blade varies in length from 9” to 13” long, with a width varying 4” to 5 ½” at the wide part of the heel and large pattern trowel the heels can be 6 ½ wid. The thickness of the blade can vary from 60 thousand wide at the heel to 35 thousand at the toe. The thickness of the blade affects the flex of the blade and the weight of the trowel. The flex is needed so the blade will not snap or break and it reduces stress on the mason’s wrist when spreading mortar. A good blade will have a nice ring to it which when tapped will last for a few seconds.

Generally, there are three types of trowels the London Shaped Pattern with a narrow heel, the London shaped pattern with a wide heel, and the Philadelphia pattern which are shown below in figure 1. With the exception of the second trowel from the left which is a Philadelphia pattern all the other trowels shown in figure 1 are of the London pattern and are of various shapes and lengths with the trowel on the far right being a wide London pattern.

The handles shown in figure 2 are attached to the tang which comes off the shank and varies in length between 5” to 6” long. You can choose handles made of wood, composite material, hard rubber or plastic. You can also put a rubber cap on the end of the handle shown in Figure 4

The handle usually has a ferrule at the front of the tang, the ferrule is a metal ring or band that surrounds the handle and protects the handle from splitting and reinforces the handle.

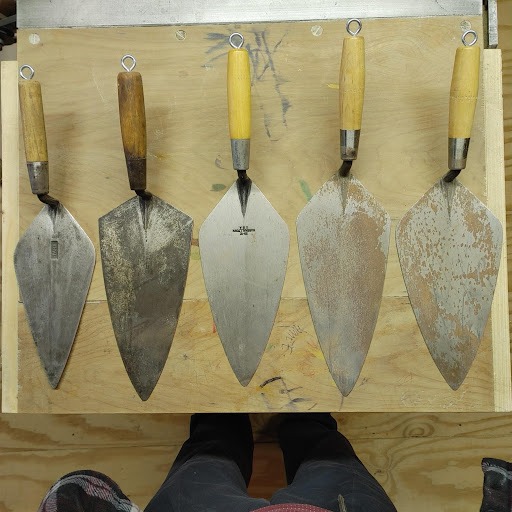

Figure 1: London and Philadelphia Trowels

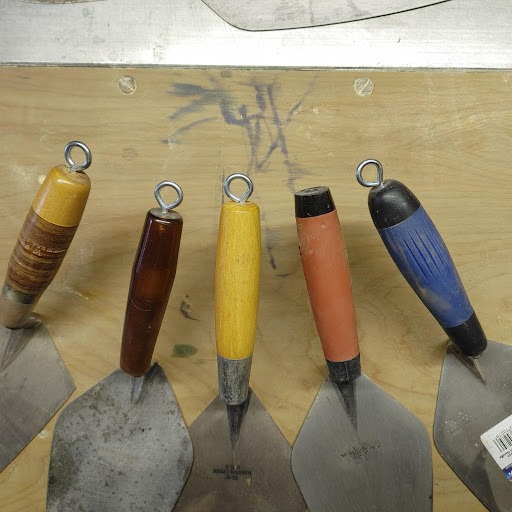

Figure 2: Types of Handles

The handle which is attached to the tang goes slightly upward about 10⁰ to 15⁰ and is called the set, or sometimes lift or pitch. This slight angle helps to keep the hand from touching the mortar and makes it easier to use when placing mortar.

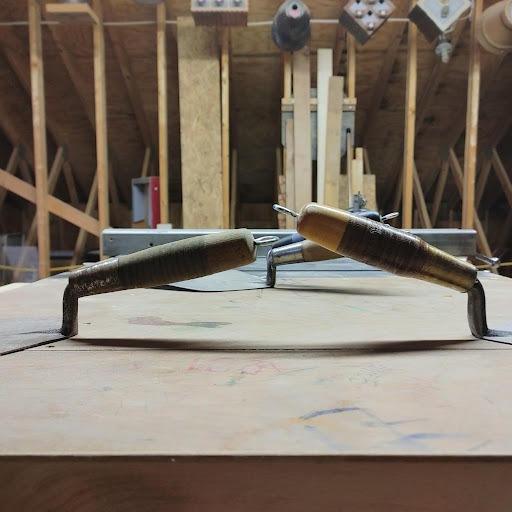

Figure 3: Different Sets of handles

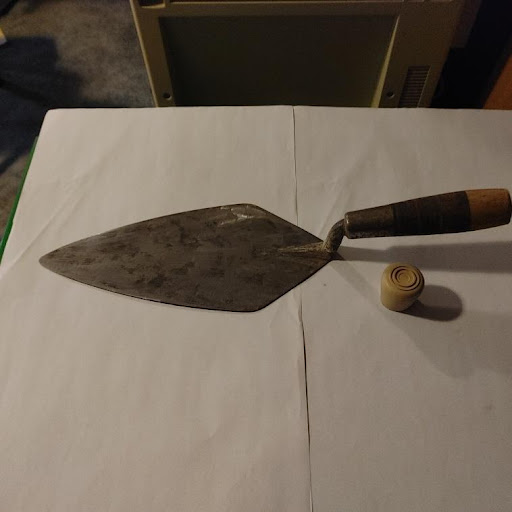

Figure 4: Trowel and rubber cap

All the aforementioned factors affect the balance of the masons’ trowel plays an important part in choosing what type of trowel to use.

A good way to find the balance of the trowel is to put your index finger under the shank and the blade should end up vertical to the ground. As said before when looking for a trowel when you tap the heel you will hear a good ring.

There is one last point I would like to discuss and that is the subject of ergonomics which I will go to in more detail in another issue. Since most tradesman starting out in the masonry industry will probably be working in the masonry industry physically for some 30 to 50 years how you use the mason’s trowel will have a large impact on the muscles and tendons of the wrist, elbow arm, and shoulder if not used correctly.

I see a lot of masons that have wrist and elbow bands on their arms and this is sometimes caused due to incorrect use of the trowel or using too heavy a trowel over the years which takes its toll on the wrist, elbow, and arm.

So, the mason should test and use care when choosing a trowel to use, according to their level of skill, the units being laid, the trowel type of handle, weight, flex, balance, feel, and comfort.
